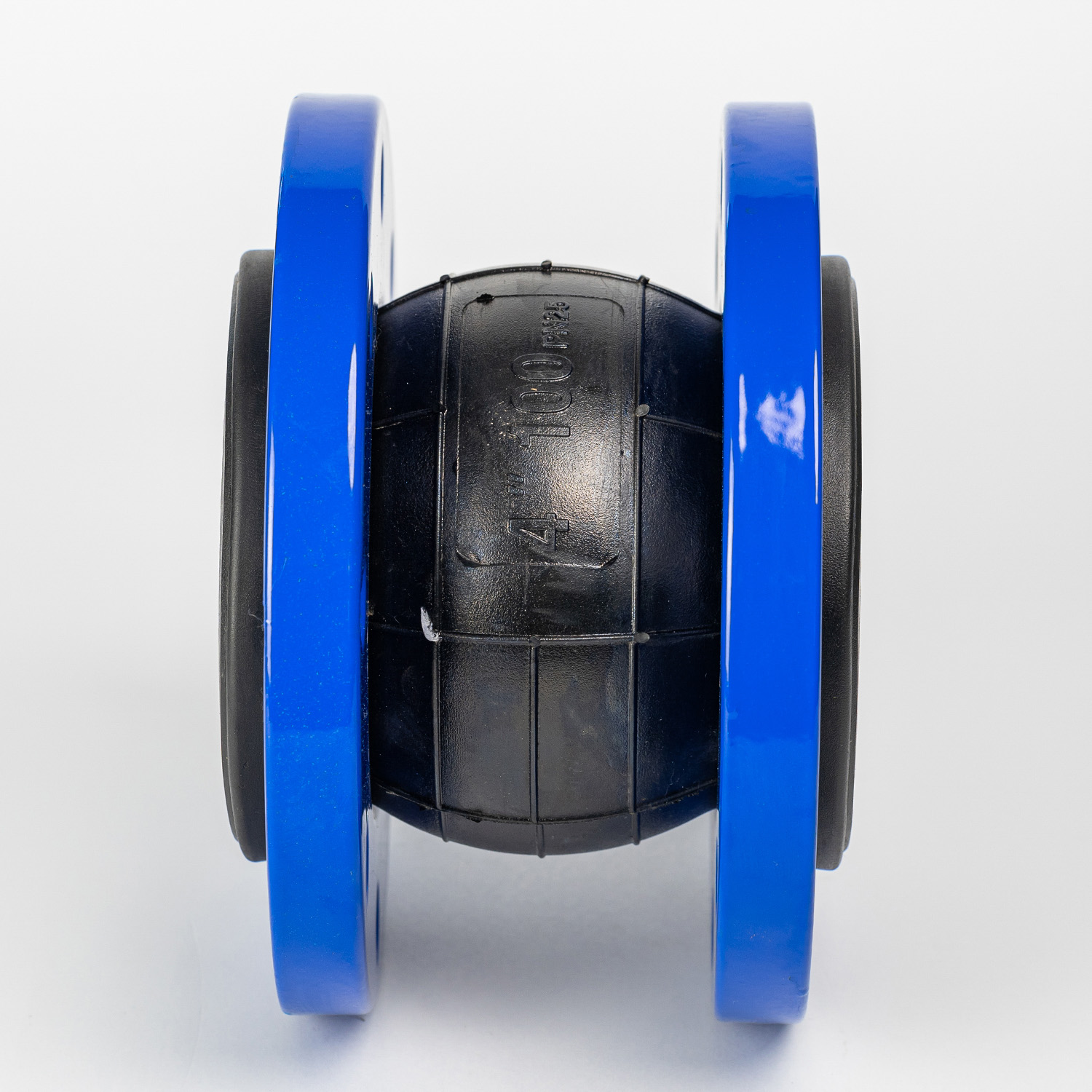

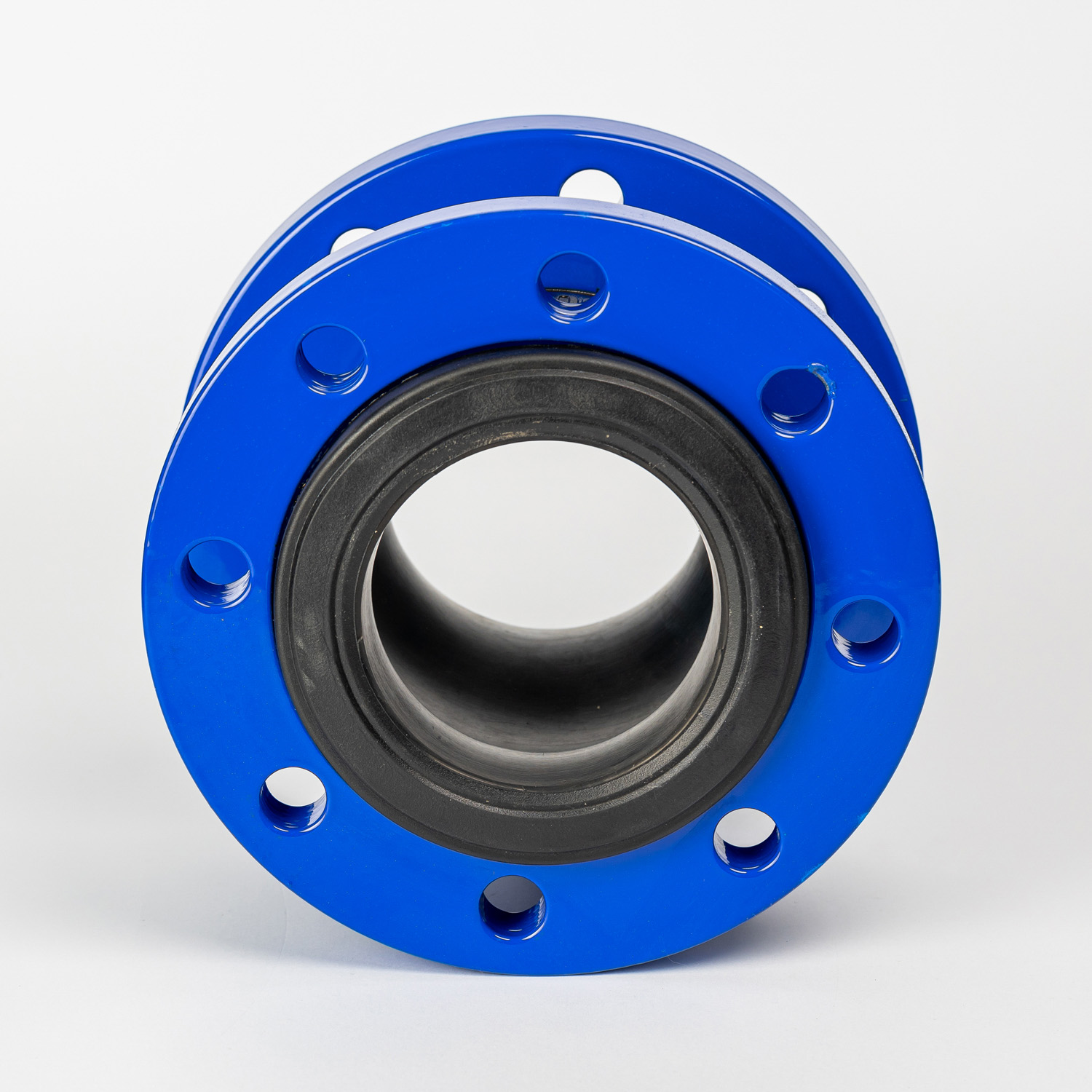

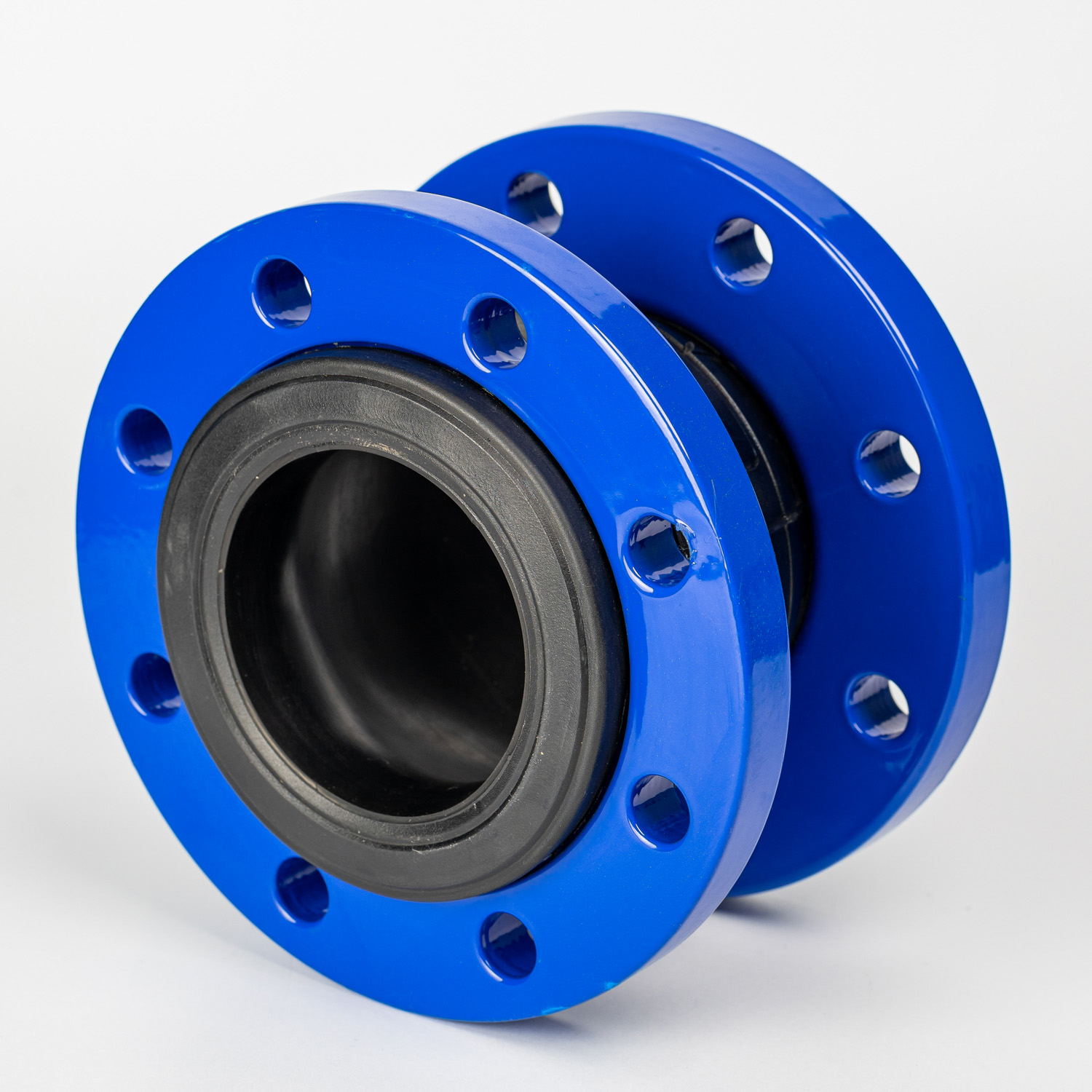

Carbon Steel Flange Single Sphere EPDM Coupling Rubber Bellows Expansion Joint

Carbon steel flange single sphere EPDM coupling rubber bellows expansion joint

Rubber expasion joints used to absorb and recuperate the deformations in the pipeline. Their design allows the longitudinal, transversel and angular movements.

It has minimum head loss, it is total bore and 100% water tight.

Sizes

DN25 to DN3000

Pressure

PN6~PN40

Temperature

-15 ~ 80℃

Flange Standard

DIN, ANSI, JIS etc

Material of Flange

Carbon steel flange

Material of Rubber

EPDM, natural rubber, NBR rubber and neoprene rubber

Performance characteristics:

Flexible rubber joints are also called shock absorbers, pipeline shock absorbers, shock absorber throats, soft joints, etc. They are a kind of pipeline joints with high elasticity, high air tightness, medium resistance and weather resistance. Its performance characteristics are:

1. Small size, light weight, good elasticity, easy installation and maintenance.

2. It can produce lateral, axial and angular displacement during installation, and is not restricted by the user's pipeline non-concentricity and flange non-parallelism.

3. It can reduce structural transmission noise during operation and has strong vibration absorption ability.

4. Our independently developed internal seamless high-pressure flexible rubber joints can more effectively prevent corrosive media from corroding the inner wall of the flexible rubber joint in high temperature resistant, acid and alkali resistant and oil resistant pipelines, and improve the service life.

No.	Part	Material
1	Body	(NR)、(CR)、(IIR)、(NBR)、(FKM)、(EPDM)
2	Inner & Outer Rubber	（NR）（CR）（IIR）（NBR）（FKM）（EPDM）（PTFE）
3	Body Carcass	Nylon cord fabric
4	Reinforcing Ring	Multi-strand coppering steel wire
5	Flange	Cast and forged carbon steel(Q235)、Stainless steel(201、304、316、321)、Plastic(CPVC、PVDF、PPH、UPVC、RPP)

Item \|Medol	KXT-1	KXT-2	KXT-3	1. If media is oil, acid or alkali. 2. If special requirements for working temperature 3. If OEM orders with drawings or samples 4. Please Inform us about above when ordering
MpaWoring pressure	1.0(10)	1.6(16)	2.5(25)
Mpa Burst Pressure	2.0(20)	3.0(30)	4.5(45)
Kpa Vacuum	53.3(400)	86.7(650)	100(750)
Applicable Temperature	-20℃~+115℃（-30℃~+250℃）-20℃~+115℃(-30℃~+250℃ under special conditions)
Applicable Medium	Air, compressed air, water, sea water, oil, acid, alkali, etc.
Note: the materials of main parts are the same with those of KXT type

DN Nominal Diameter （mm）		Axial displacement（mm）		Length（mm）	Haorizontal isplacement （mm）	Angular deflection(a1+a2)°
mm	inch	elongation	compression	Length（mm）	Haorizontal isplacement （mm）	Angular deflection(a1+a2)°
32	1.25	6	9	95	9	15°
40	1.5	6	10	95	9	15°
50	2	7	10	105	10	15°
65	2.5	7	13	115	11	15°
80	3	8	15	135	12	15°
100	4	10	19	150	13	15°
125	5	12	19	165	13	15°
150	6	12	20	180	14	15°
200	8	16	25	210	22	15°
250	10	16	25	230	22	15°
300	12	16	25	245	22	15°
350	14	16	25	255	22	15°
400	16	16	25	255	22	15°
450	18	16	25	255	22	15°
500	20	16	25	255	22	15°
600	24	16	25	260	22	15°
700	28	16	25	260	22	15°
800	32	16	25	260	22	15°
900	36	16	25	260	22	15°
1000	40	18	26	260	24	15°
1200	48	18	26	260	24	15°
1400	56	20	28	350	26	15°
1600	64	25	35	350	30	10°
1800	72	25	35	350	30	10°
2000	80	25	35	350	30	10°
2200	88	25	35	400	30	10°
2400	96	25	35	400	30	10°
2600	104	25	35	400	30	10°
2800	112	25	35	400	30	10°
3000	120	25	35	400	30	10°
Note: 1. Special requirements can be made according to user drawings. The sphere can be made of nitrile rubber, EPDM, chloroprene rubber and other materials. 2. For suspended water supply, use products above DN200. The pipeline must have a fixed support or fixed bracket, otherwise the product should be installed with an anti-pull-off device. 3. If the user uses a rubber joint, the corresponding flange should be a valve flange.
