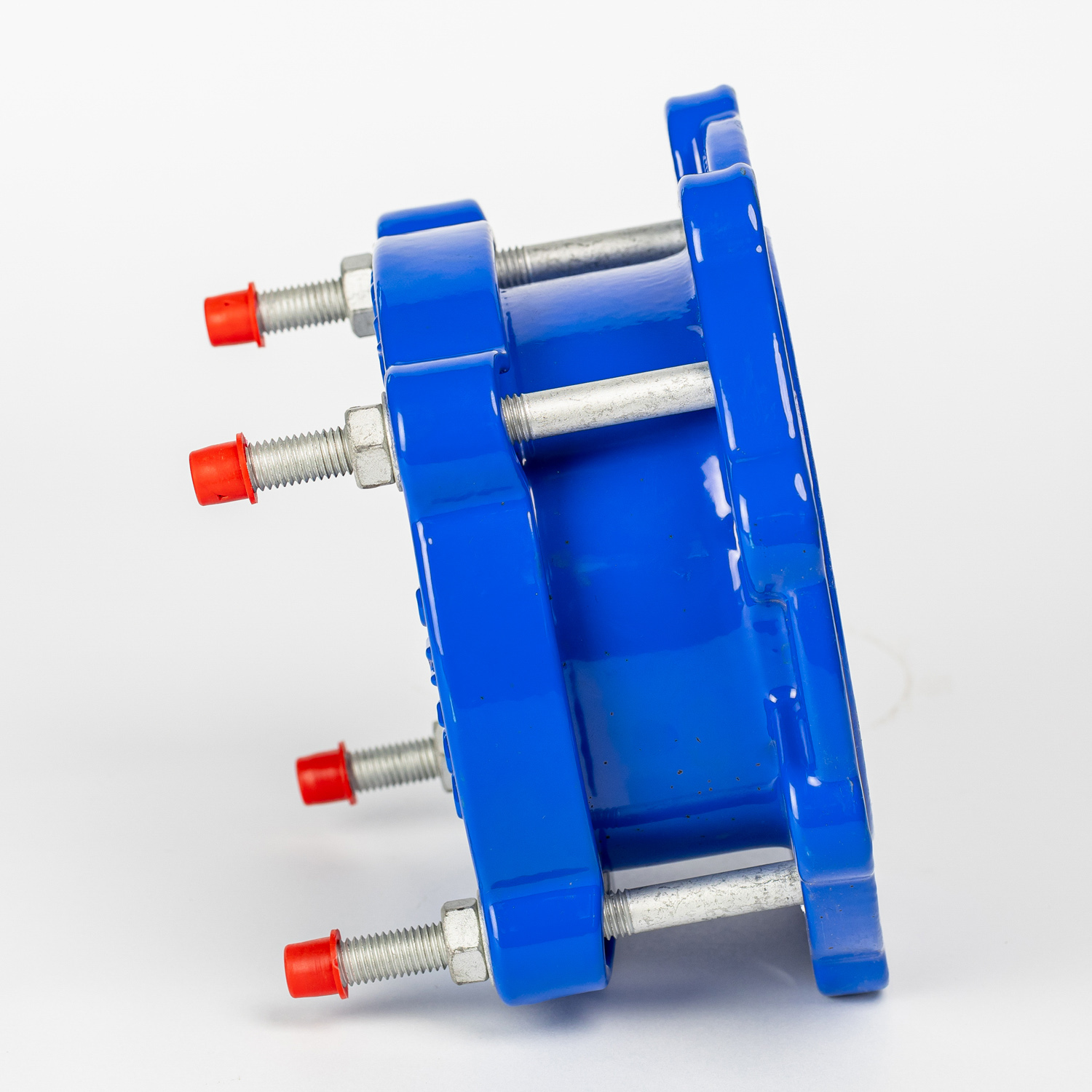

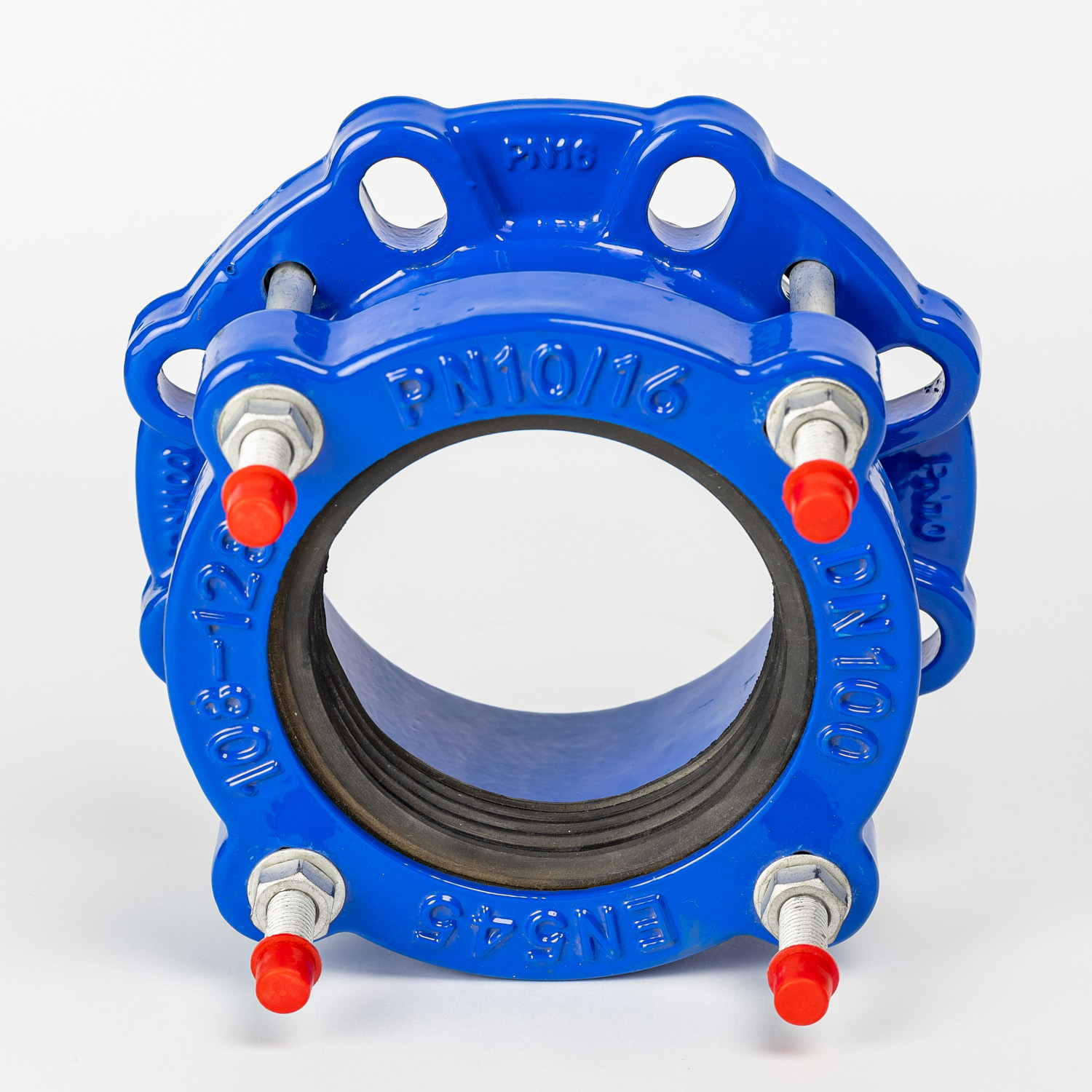

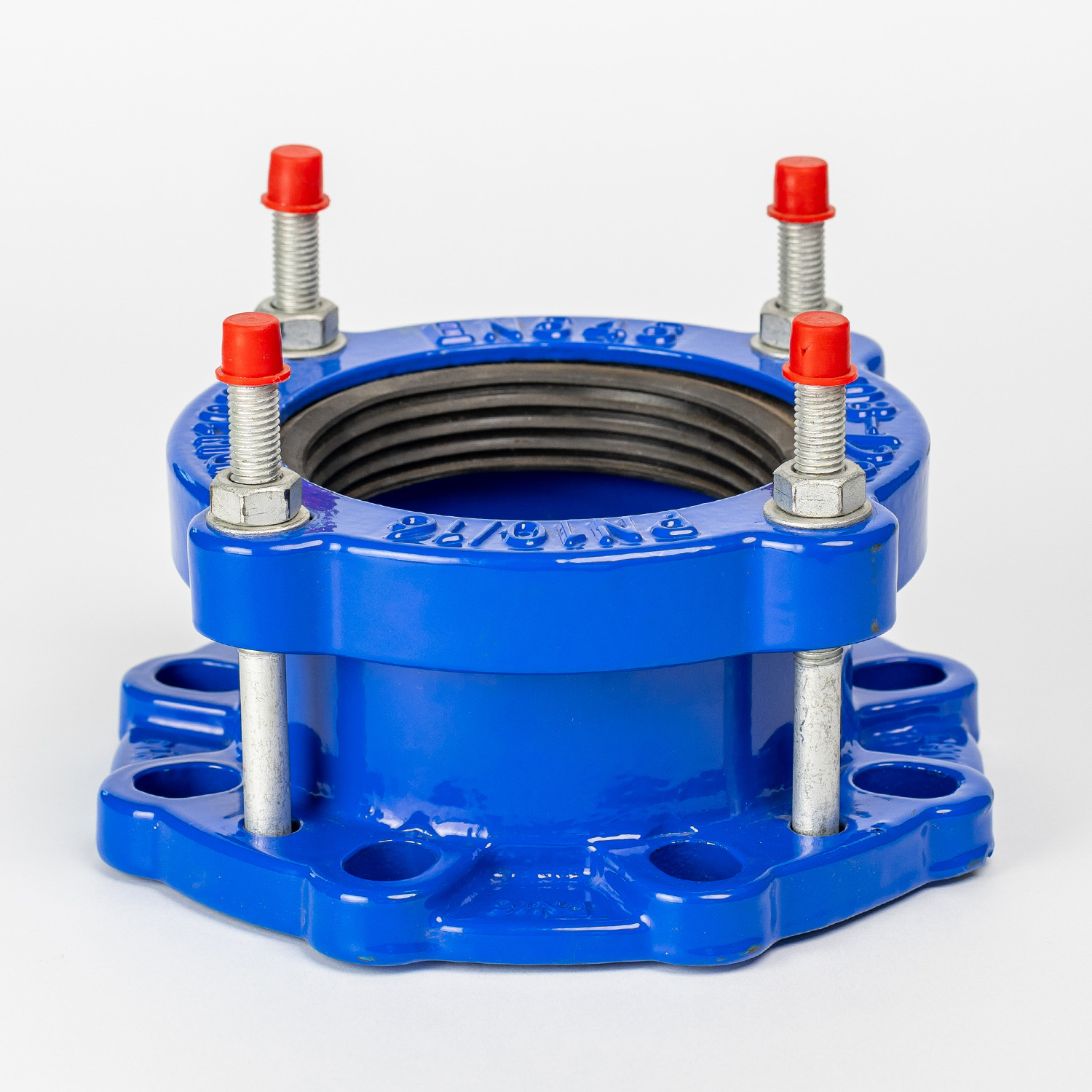

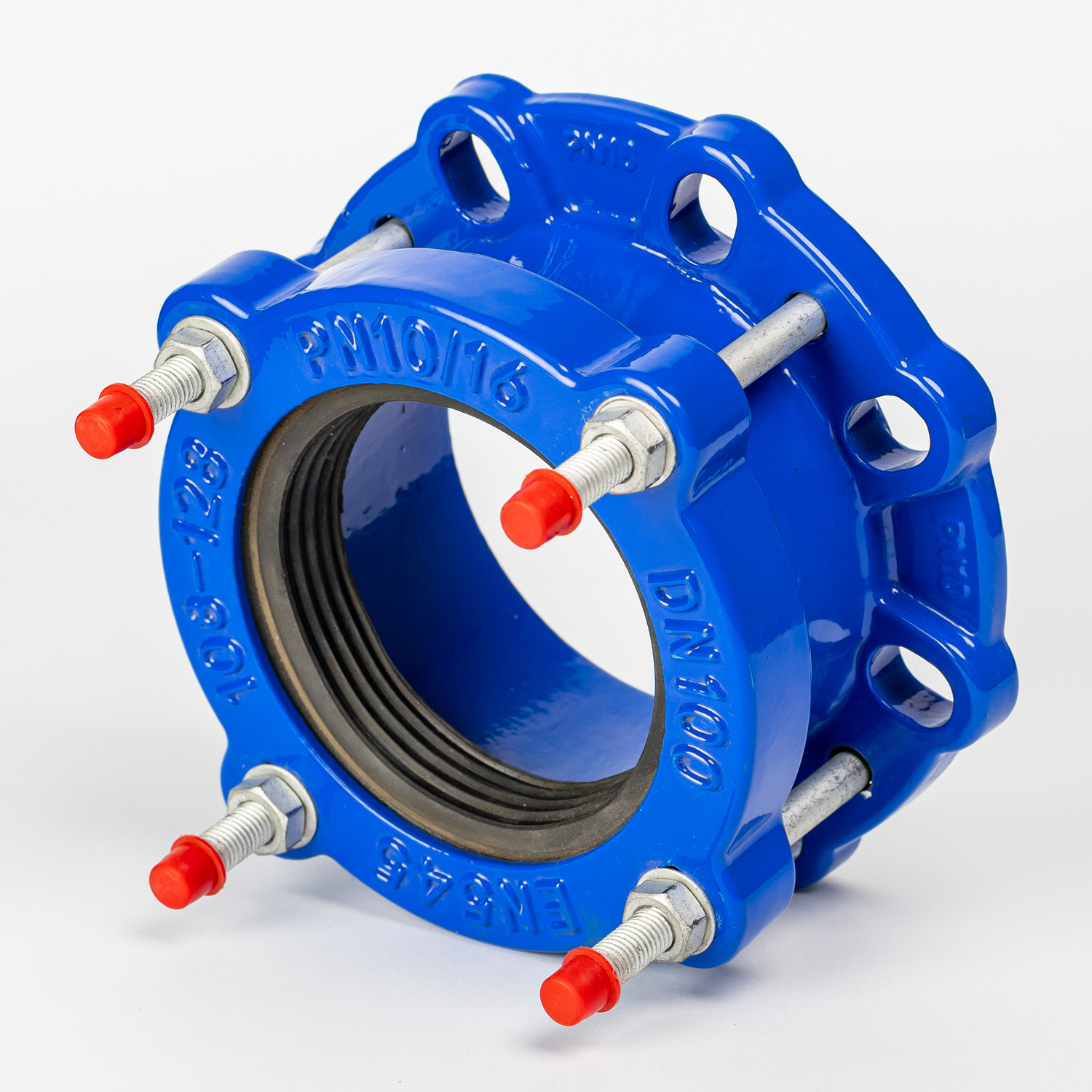

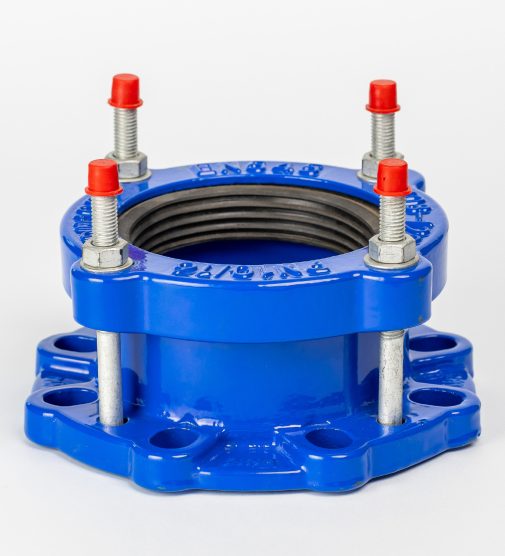

Carbon Steel Flange Adaptors

Sizes
DN50 to DN400
Pressure
PN10~PN16
Rubber Gasket
EPDM, NBR
Flange Standard
DIN, ANSI, JIS etc
Material
Ductile Iron
Bolts & nuts
Galvanized Steel, stainless steel

Overview

Flange adaptor couplings provide an effective means for inserting a flange into a pipeline for connection to another flanged component or valve. These adaptors are suitable for use in potable water; non-potable water and wastewater pipelines.
Working pressures may vary from 10 to 16 bar depending on the application. The flange design of the adaptors is suitable for various international variations like DN, BS and ANSI.
Pipe Range Pressure Bolt A D H Weight Pipe to fit
Norm Flange L No. mm mm mm kgs DI ST PVC AC CI GRP
DN40 48-60 PN10/16 M12*130 2 150 150 80 2.8 √ √ √
DN50 59-72 PN10/16 M12*130 2 156 165 80 3.0 √ √ √ √ √
DN65 72-85 PN10/16 M12*130 2 174 190 80 3.9 √ √ √ √
DN80 88-103 PN10/16 M12*130 4 185 200 80 4.8 √ √ √ √ √ √
DN100 96-116 PN10/16 M12*130 4 205 220 80 5.0 √ √ √ √
DN100 105-125 PN10/16 M12*130 4 210 220 80 5.3 √ √ √ √ √
DN100 109-128 PN10/16 M12*130 4 218 220 80 5.5 √ √ √ √ √
DN150 138-153 PN10/16 M12*140 4 246 250 80 6.6 √ √ √ √
DN150 155-175 PN10/16 M12*140 4 275 285 80 7.5 √ √ √
DN200 159-182 PN10/16 M12*140 4 280 285 80 7.6 √ √ √ √ √ √
DN200 192-210 PN10/16 M12*140 4 312 340 80 11.2 √ √ √
DN200 198-225 PN10/16 M12*140 4 320 340 80 12.0 √ √ √ √ √
DN250 218-235 PN10/16 M12*140 4 328 340 85 10.6 √ √ √ √ √ √
DN250 242-262 PN10/16 M12*150 6 360 400 85 14 √ √ √ √
DN250 250-274 PN10/16 M12*150 6 370 400 85 14.8 √ √ √ √ √ √
DN250 272-289 PN10/16 M12*150 6 382 400 85 14.9 √ √ √ √ √ √
DN300 315-332 PN10/16 M12*150 6 430 455 85 17.9 √ √ √ √
